The Alpine GXH5060 is a compact 60-gallon UTV water skid unit built for water transport, fire suppression, dust control, equipment washdown, plant watering, and property maintenance.
Designed to fit the beds of most popular UTVs and many pickup trucks, this fully assembled water tank and pump system provides a dependable mobile water supply wherever you need it.
Powered by a Honda GXH50 engine and high-performance water pump delivering up to 70 GPM and 50 PSI, the GXH5060 combines a durable 60-gallon polyethylene water tank, welded steel frame, 50-foot high-pressure hose, manual hose reel, and adjustable nozzle into one compact, ready-to-use system.
The GXH5060 is a versatile UTV water tank and pump system used by property owners, farmers, ranchers, construction crews, industrial users, and wildland fire crews. Its compact footprint allows water to be transported into areas that may be difficult to reach with larger trucks or trailers.
- Wildland and spot fire suppression
- Prescribed burn support
- Property and wildfire preparedness
- Dust control
- Plant and landscape watering
- Remote water transport and supply
- Equipment washdown and cleaning
- Barn, stall and structure washdown
- Agricultural and property maintenance
Complete 60-Gallon UTV Water Tank & Pump System:
- Durable 60-gallon polyethylene water tank
- Honda GXH50 engine
- High-performance water pump – up to 74 GPM / 52 PSI
- Heavy-Duty Welded Steel Frame - with lifting handles
- 50 ft. × 3/4 in. high-pressure hose
- Heavy-duty manual hose reel
- Twist Hose Nozzle 3/4" GHT - up to 18GPM (N34EB) - (nozzle upgrades sold separately)
- 1.5 in. auxiliary suction/draft port with Camlock fitting
Auxiliary Suction & Discharge Options
The standard 1.5-inch auxiliary suction port allows the pump to draw from an external water source when properly configured with a compatible suction hose and strainer.
An optional 1.5-inch NST auxiliary discharge port is also available for additional hose and discharge configurations.
Upgrade / Add-On Option:
- 1.5" Auxiliary Discharge Port - NST Thread Fitting = +$189.99
Quickly convert your optional 1.5” discharge port to 1” or 3/4” with a thread adapter.
- 1.5" NST - 1" NST Thread Adapter = +$40.92 (AD112NH1NH)
- 1.5" NST - 3/4" GHT Thread Adapter = +$38.88 (AD112NH34G)
- 1.5" x 20ft Suction Hose & Brass Foot Valve Strainer = +$132.35 (HS11220BVS)
Auxiliary hoses & nozzle sold separately HERE
Specifications:
Model: GXH5060
Tank Capacity: 60 Gallons
Engine: Honda GXH50
Maximum Pump Flow: 74 GPM
Maximum Pump Pressure: 52 PSI
Dimensions: 42" W × 44" L × 28" H
Empty Weight: 145 lbs.
Approx. Full Weight: 650 lbs.
Hose: 50 ft. × 3/4"
Standard Suction Port: 1.5" Camlock
Frame: Welded steel
Manufactured: USA

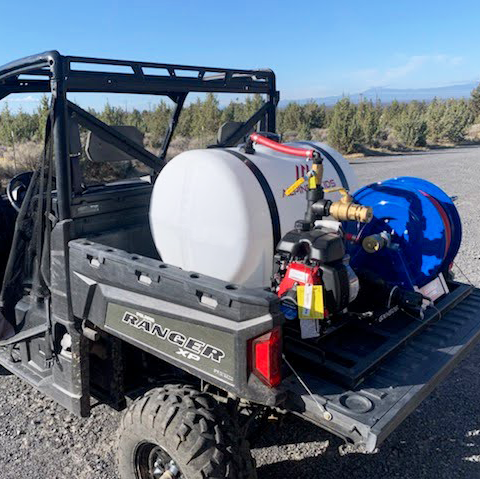

60 Gallon UTV Water Skid Unit – GXH5060
Alpine portable UTV Skid Units ship fully assembled and ready to be put to work.
Fits Most Popular UTVs
The compact GXH5060 is designed to fit the beds of many popular UTV and side-by-side models, including Polaris Ranger, Can-Am Defender, Kawasaki Mule, John Deere Gator, Kubota, Honda, Yamaha, and others.
Always verify your UTV's bed dimensions and payload capacity before ordering. If the standard GXH5060 doesn't fit your vehicle or application, Alpine can manufacture a custom water skid to meet your requirements.
Proudly manufactured in America and built with the highest quality parts available.
